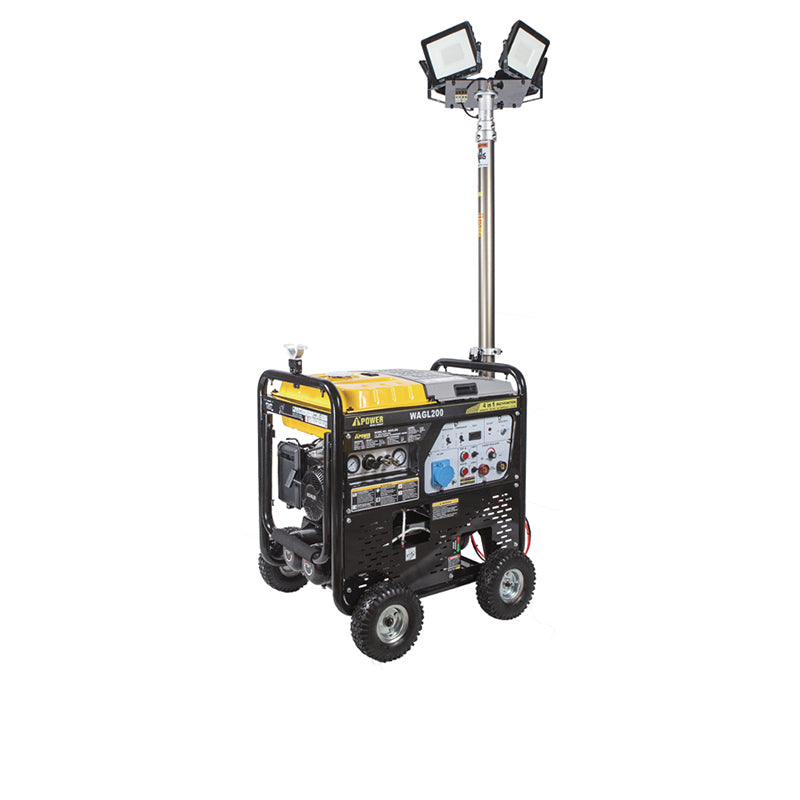

WAGL200
WAGL200
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
Product Features:
- Multi-function in DC welding, AC generator output, air compressor, and lighting
- Two-stage air compressor for high pneumatic tools
- Large tank for air compressor for higher efficiency
- It can weld 4.0mm electrode for long time
- Can output AC 5.0kW steadily
- Lights can lift to 4.5m high by operation
Specifications:
| Duty Cycle | 0.5 |
|---|---|
| OCV (Open Circuit Voltage) | DC 75V |
| Current Range (A) | DC 50-200 |
| Welding Voltage (V) | DC 22-28V |
| Welding Rod | 1.6-5.0mm |
| Rated Current/Voltage (A/V) | 180A / 27.2V |
| Auxiliary Rated Power Output | 5.0kW AC 240V Or 120V |
| Engine Model | SC420 |
| Max. Power/Speed (RPM) | 5KW/3600 |
| Displacement (cc) | Gas |
| Start Method | Recoil/E-start / Remote control |
| Capacity (L) | 20 |
| Stage | 1 |
| Flow (L/min) | 100 |
| Pressure Range (Mpa) | 0.6-0.8 |
| Lights Lift | 4.5m |
| Lights Power | Led/4×100W |
| Luminous Flux | 80-100lm/W |
| Fuel Tank Capacity (L) | 30 |
| Protection Class | IP23 |
| Dimensions (mm) | 850.5*583*780 |
| Net Weight (kg) | 168.5 |
Product features
Product features
60 in stock
